THE M-SERIES MANUALAN INTERACTIVE EDITION

The Norden Bomb Sight manual

Bomb sight assemblies

Loading page…

Bomb sight assemblies

PAGE 142 / Bomb sight assemblies

RESTRICTED

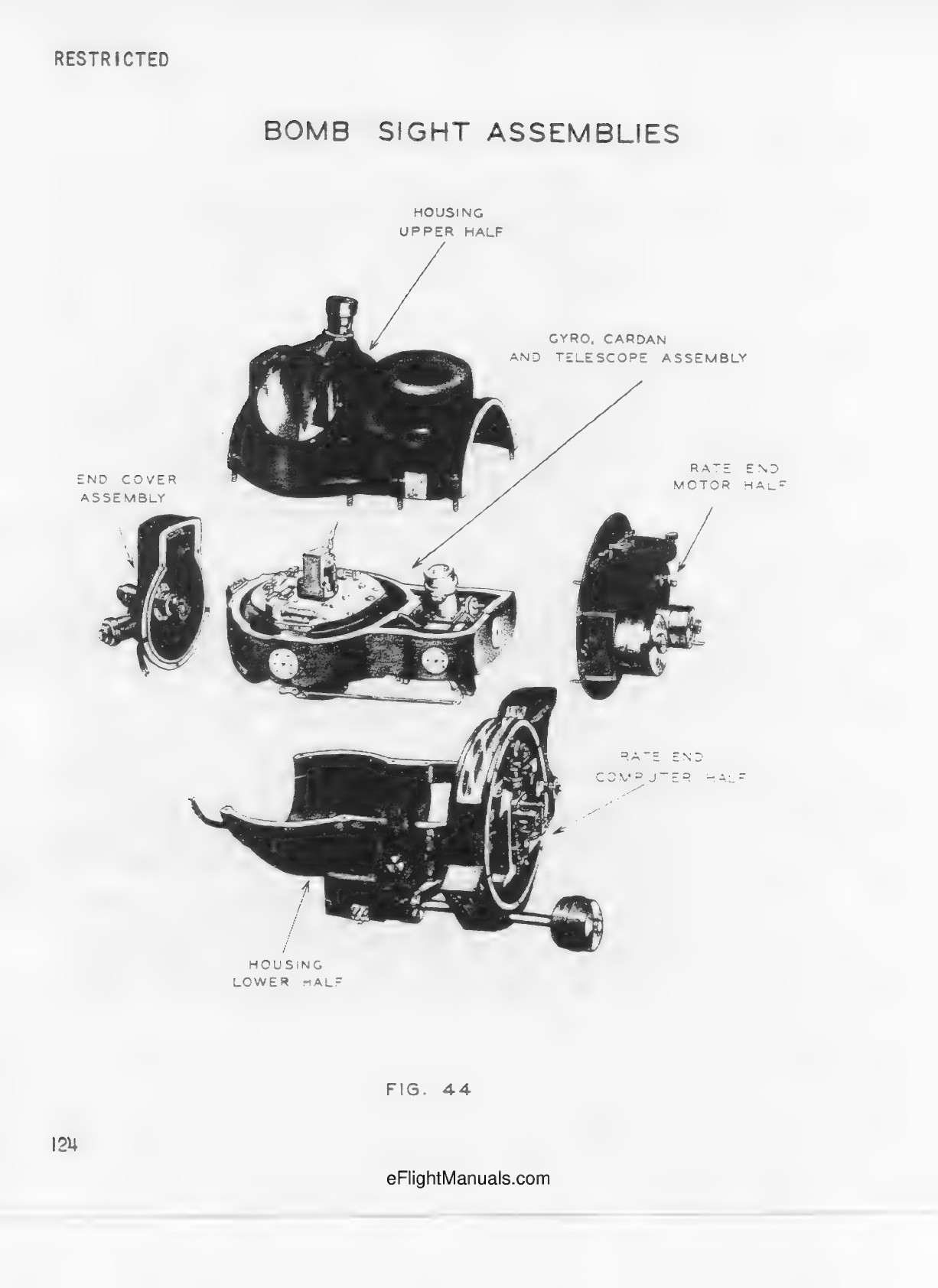

BOMB SIGHT ASSEMBLIES

Interactive drawing

FIG. 44

124

Original scan: norden2.pdf, PDF page 142

Drag left to reveal the original from the right. Use arrow keys to adjust, Home for the original, or End for the recreated page.

Explore this mechanismSight gyro and telescope cardan ↗Sight upper housing ↗Sight lower housing ↗Sight end-cover assembly ↗Sight-head assemblies ↗Sight gyro and cradle stabilization ↗
