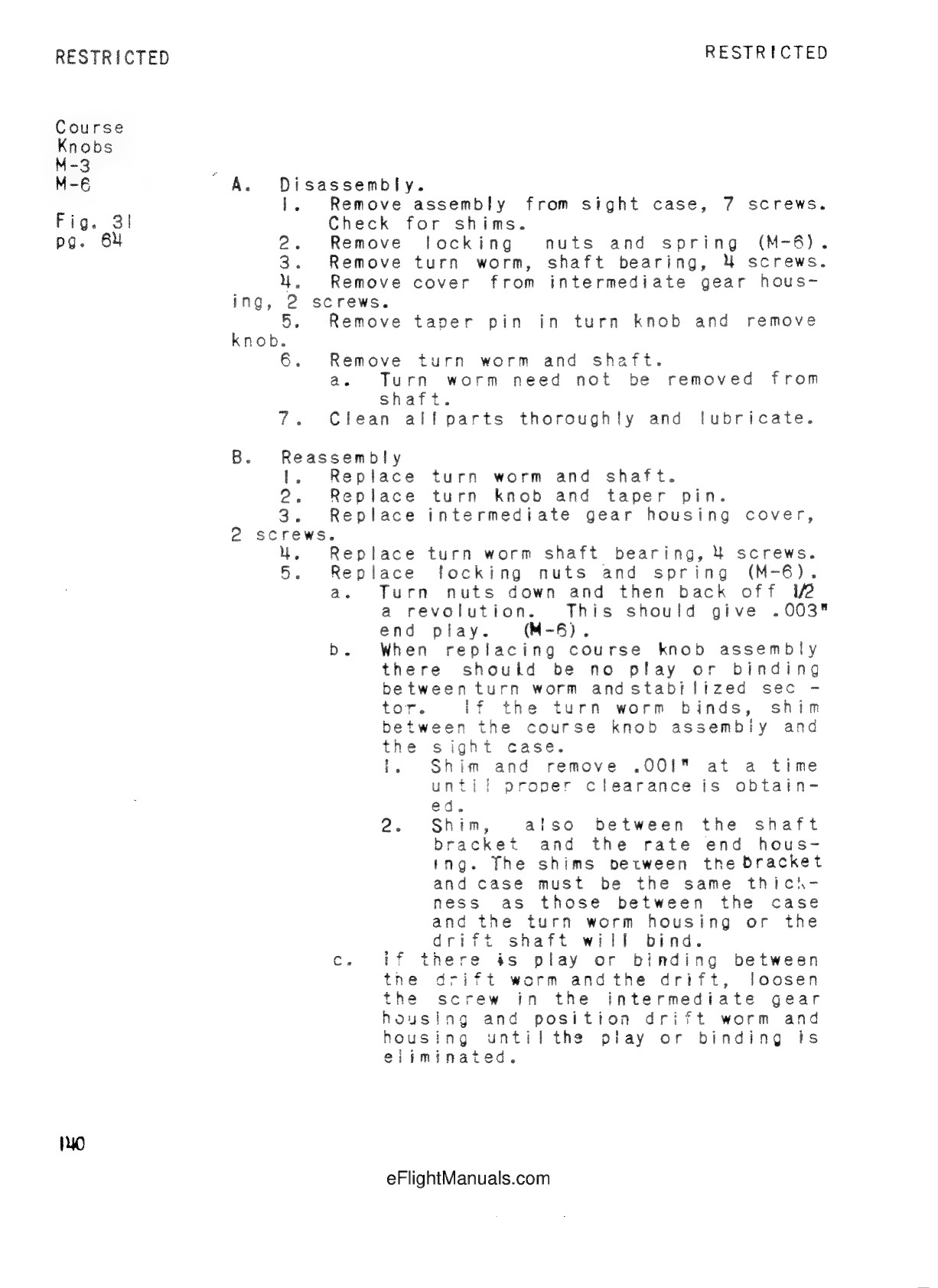

Course knobs
RESTRICTED
Course
Knobs
M-3
M -6
Fig.
P9 •
A.
Disassembly.
Remove assembly from sight case, 7 screws.
Check
for shims.
Remove
locking
nuts and
spring (M-6).
3. Remove turn worm, shaft bearing, 4 screws.
cover from intermediate
gear hous-
ing, 2 screws.
Remove taper pin in turn knob and remove
knob.
6.
Remove turn worm and shaft.
a.
Turn
worm need not be
removed from
shaft.
7.
Clean
all parts thoroughly and lubricate.
B. Reassembly
1.
Replace turn worm and shaft.
2.
Replace
turn knob and taper pin.
3. Replace intermediate gear housing cover,
2 screws.
4.
5.
Replace turn worm shaft bearing, 4 screws.
Replace
locking nuts and
spring (M-6).
a.
Turn nuts down and then back off 1/2
a revolution.
This should give .003"
end play.
(M-6).
When replacing course
knob assembly
there should be no play
or binding
between turn worm
and stabilized
sec
tor.
I f
the turn worm binds,
shim
between the course knob assembly and
the
sight case.
1.
Shim
and
remove . 00l" at a time
until proper clearance is obtain-
ed.
2.
Shim,
between the shaft
bracket and the rate end hous-
ing. The shims between the bracket
must be the same thic!-
as those between the
and the turn worm housing or the
drift shaft will bind.
if there is play or binding between
drift worm and the drift, loosen
screw in the
intermediate gear
housing and position drift worm
housing
untilthe play or binding is
eliminated.
2.
4.
Remove
5.
b.
atso
and
case
case
tne
the
and
140
