The Norden Bomb Sight manual

M-6 stabilizer wiring with Honeywell modification

Loading page…

M-6 stabilizer wiring with Honeywell modification

PAGE 34 / M-6 stabilizer wiring with Honeywell modification

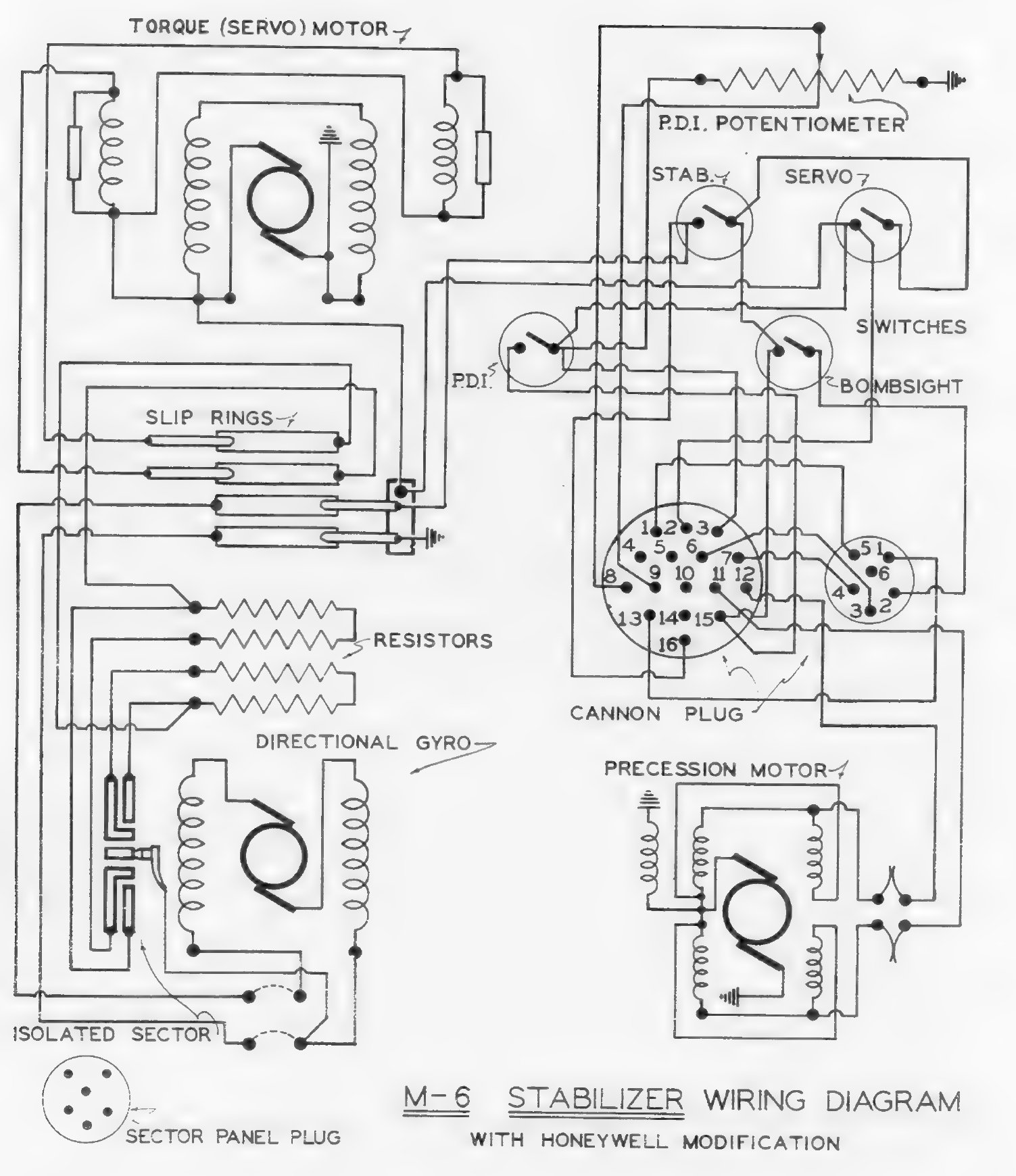

RESTRICTED Figure 10. M-6 stabilizer wiring diagram with Honeywell modification, preserving the original wiring and numbered connections, including the disconnected sector panel plug.

Figure 10. M-6 stabilizer wiring diagram with Honeywell modification, preserving the original wiring and numbered connections, including the disconnected sector panel plug.

FIG. 10

16

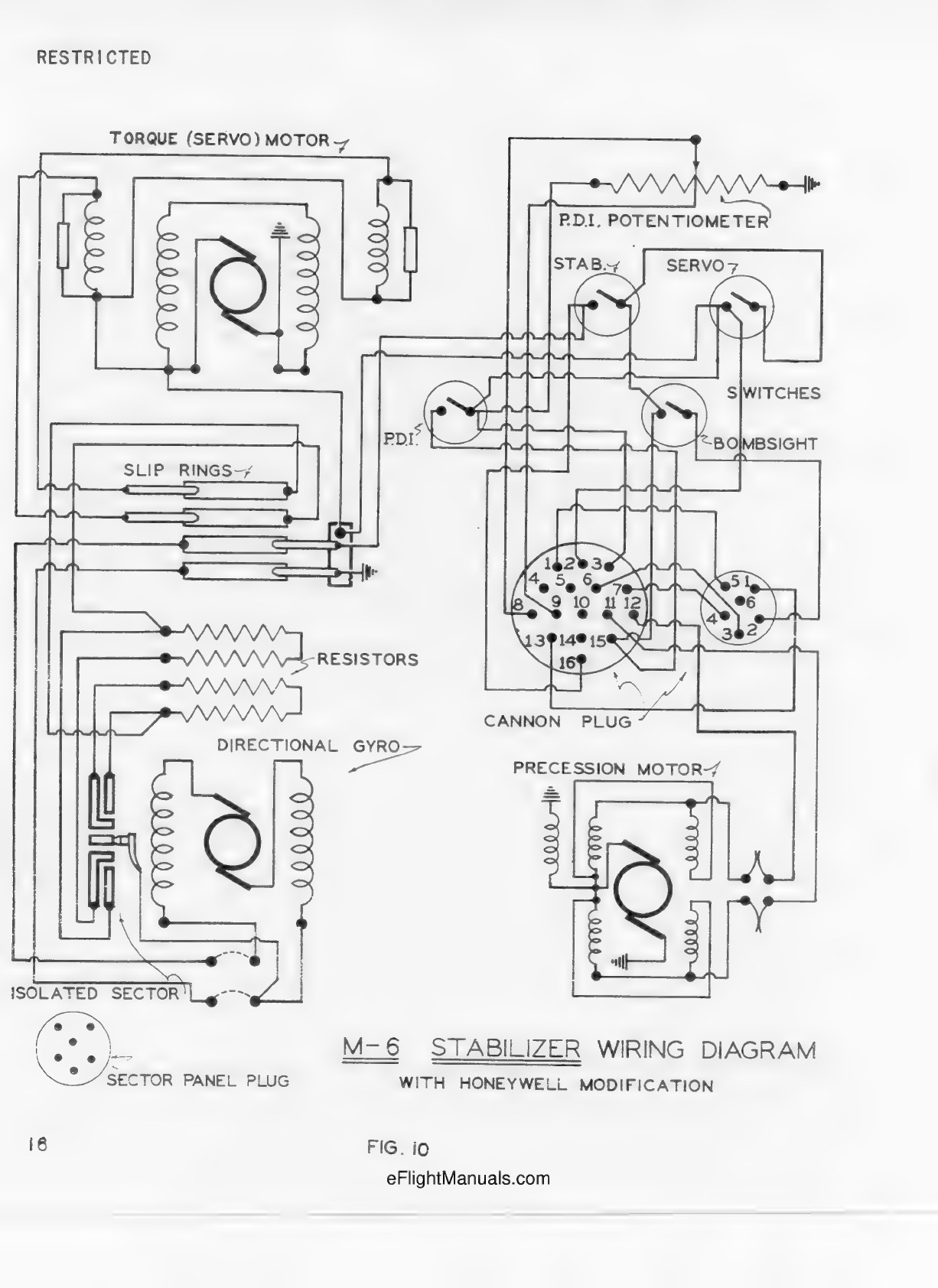

Original scan: norden2.pdf, PDF page 34
