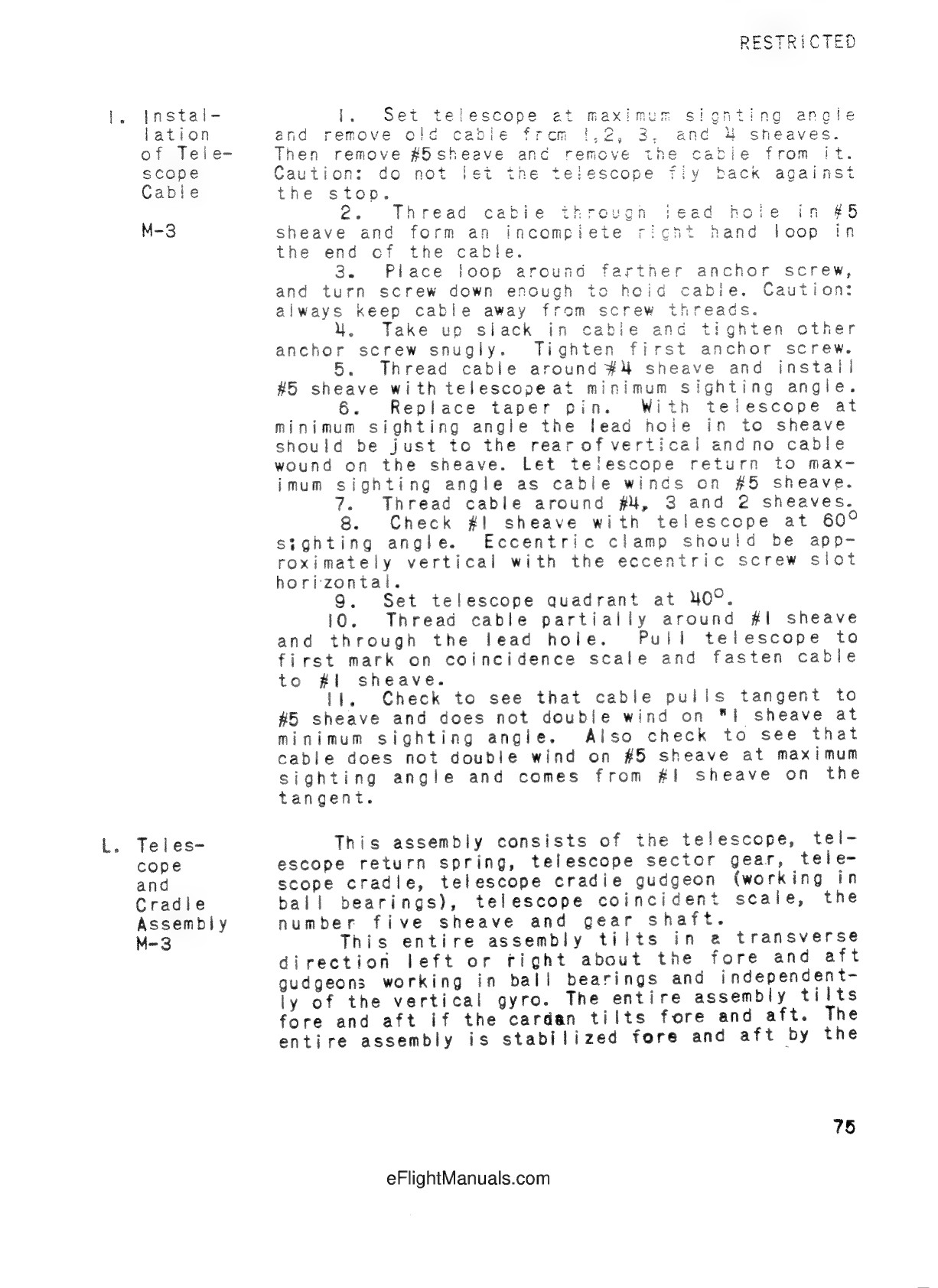

Installation of telescope cable
RESTRICTED
1.
Instal-
lation
of Tele-
scope
Cable
M-3
L. Teles-
cope
and
Cradle
Assembly
M-3
Set telescope at maximum signting angle
and remove old cable from 1, 2, 3, and
sheaves.
remove #5 sheave and remove the cable from
Caution: do not let the telescope fly back against
the
stop.
2.
Thread
cabie througn
sheave and
form
an incompete right
hand loop in
the end of the cable.
3.
Place loop
around farther anchor screw,
and turn screw down
enough to hoid
cabie.
Caution:
always keep cable away from screw threads.
Take up slack in cable and tighten other
anchor
screw snugly.
Tighten
first
anchor screw.
5.
Thread cable around #4 sheave and install
#5 sheave with telescope at minimum
sighting angle.
6.
Replace taper pin.
Wi thi
telescope at
minimum sighting angle the lead hole in
to sheave
should be just to the rear of vertical and no cable
wound on the sheave. Let telescope
return to max-
imum
sighting angle
as cable winds on #5 sheave.
7.
Thread cable around #4, 3 and 2 sheaves.
8. Check
# sheave
with
telescope at 60°
sighting angle.
Eccentric clamp
should
be
app-
roximately vertical with the eccentric screw
siot
horizontal.
Set telescope quadrant at 40°
10. Thread
cable partially around
#| sheave
and
lead hole.
Pull telescope to
first mark
on coincidence scale and
fasten cable
to #i sheave.
11.
Check to see that cable pulls
tangent to
#5 sheave and does not double wind on
* | sheave at
minimum sighting angle.
Also check to see
that
cable does not double wind on #5 sheave at maximum
sighting angle and comes from #l sheave on the
tangent.
This assembly consists of the telescope,
tel -
escope return spring, telescope sector gear,
tele-
scope cradle,
telescope cradie gudgeon
(working in
ball bearings), telescope coincident
scale, the
number
five
sheave and
gear shaft.
This
entire
assembly tilts in
a transverse
direction left or right about the fore and aft
gudgeons working in ball bearings and independent-
ly of the vertical gyro. The entire assembly tilts
fore and aft if the cardan tilts fore and aft. The
entire assembly is stabilized fore and aft by the
75
