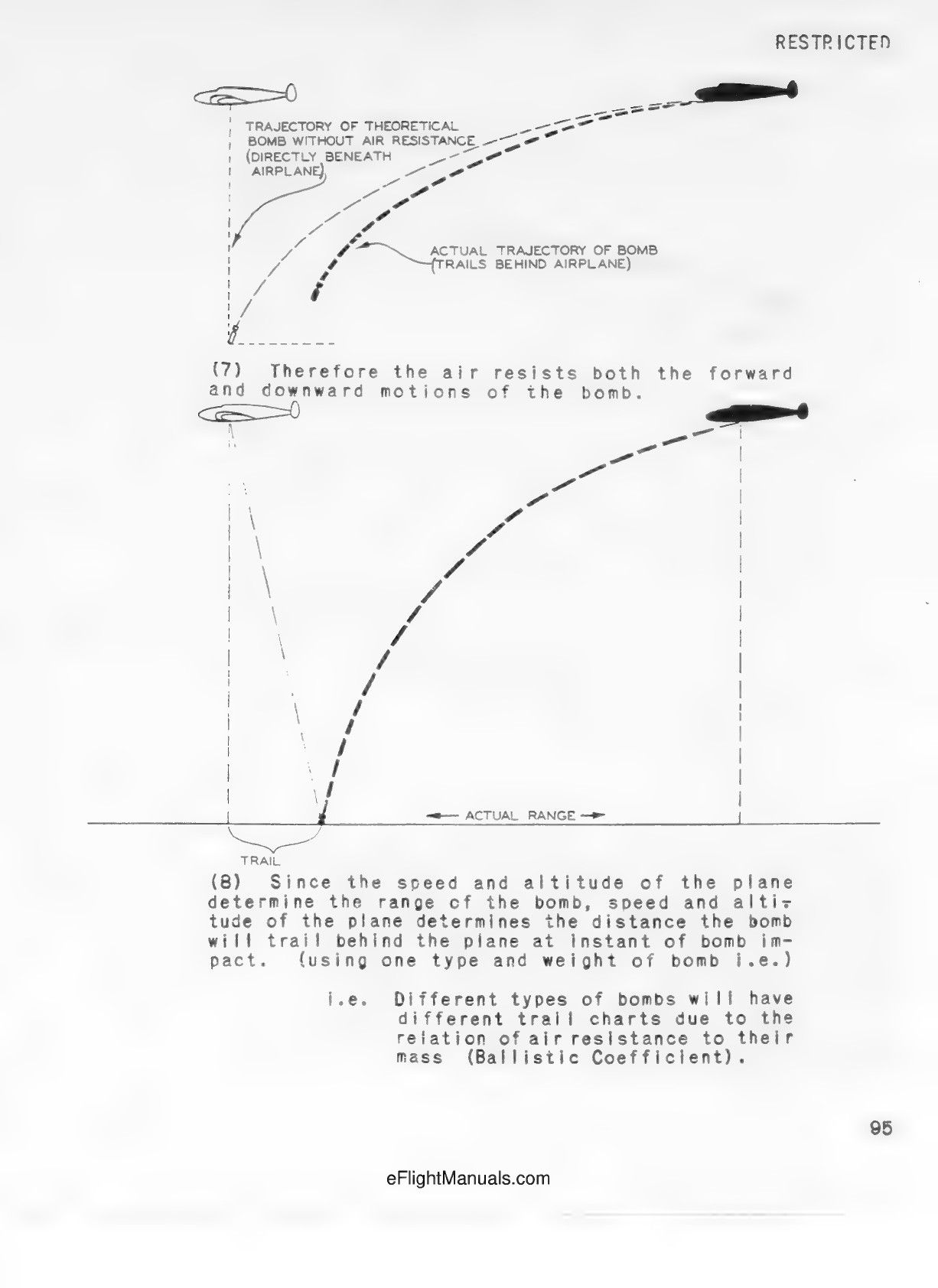

Bomb trajectory
RESTRICTED
95

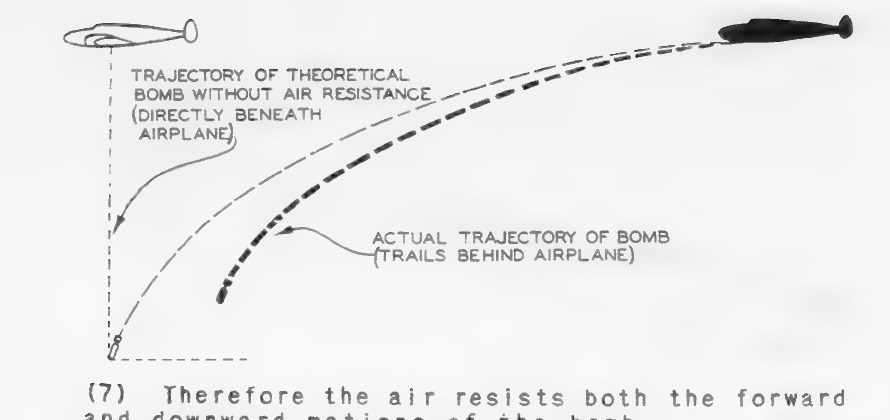

downward motions of the bomb.
determine the

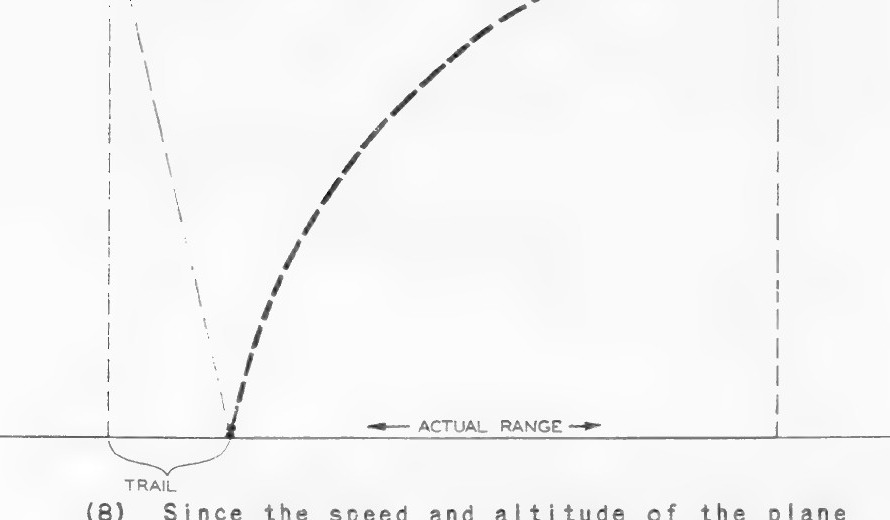

range of the bomb,
speed and alti-
tude of the plane determines the distance the bomb
will trail
behind the plane at instant of bomb im-
pact. (using one type and weight of bomb i.e.)
1.e. Different
i.e. Different types of bombs will have
different trail charts due to the
relation of air resistance to their
mass
(Ballistic Coefficient).
