The Norden Bomb Sight manual

M-6 stabilizer wiring without Honeywell modification

Loading page…

M-6 stabilizer wiring without Honeywell modification

PAGE 32 / M-6 stabilizer wiring without Honeywell modification

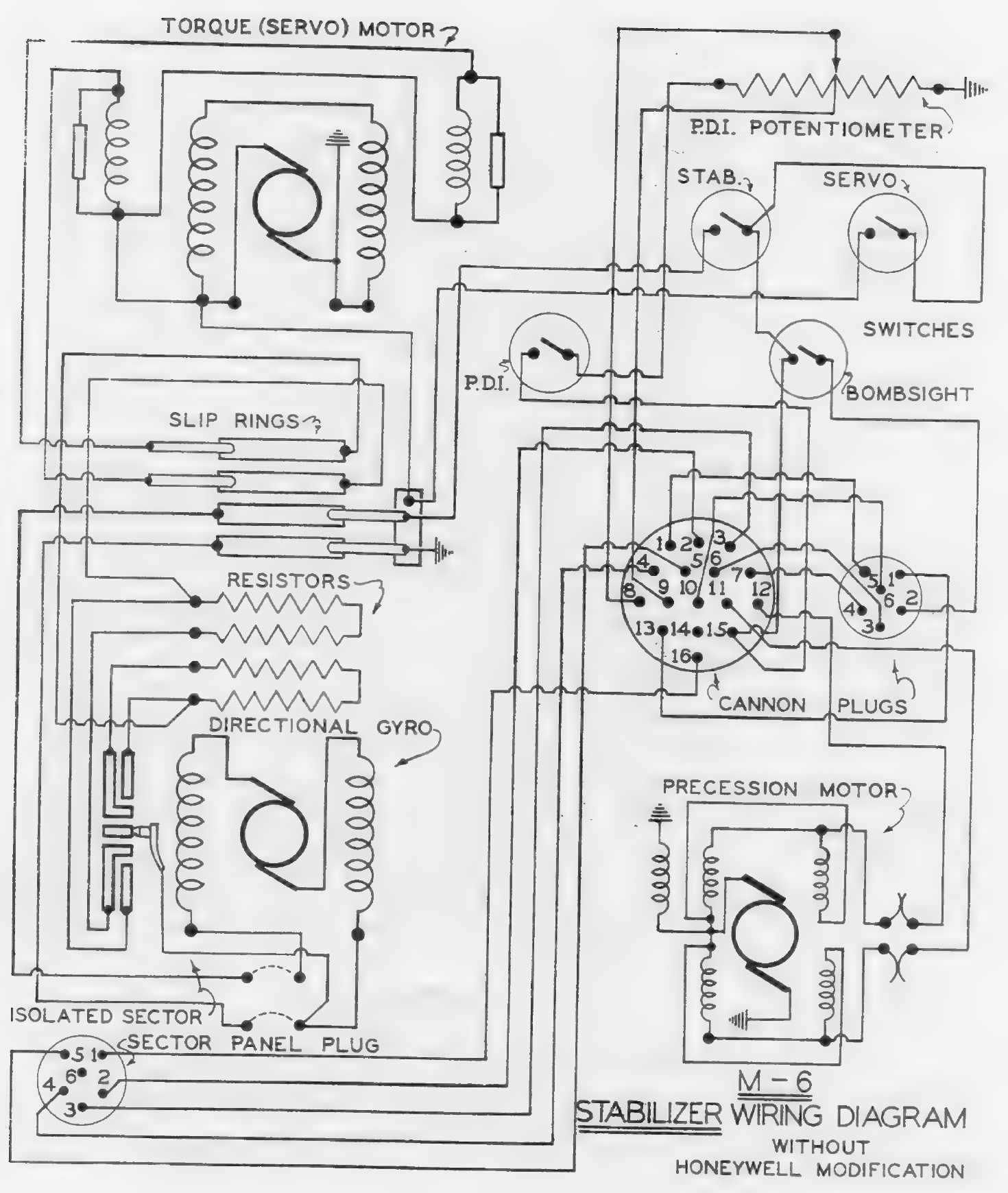

RESTRICTED Figure 9. M-6 stabilizer wiring diagram without Honeywell modification, preserving the original wiring, numbered connections, switches, motors, PDI coil and isolated sector.

Figure 9. M-6 stabilizer wiring diagram without Honeywell modification, preserving the original wiring, numbered connections, switches, motors, PDI coil and isolated sector.

FIG. 9

14

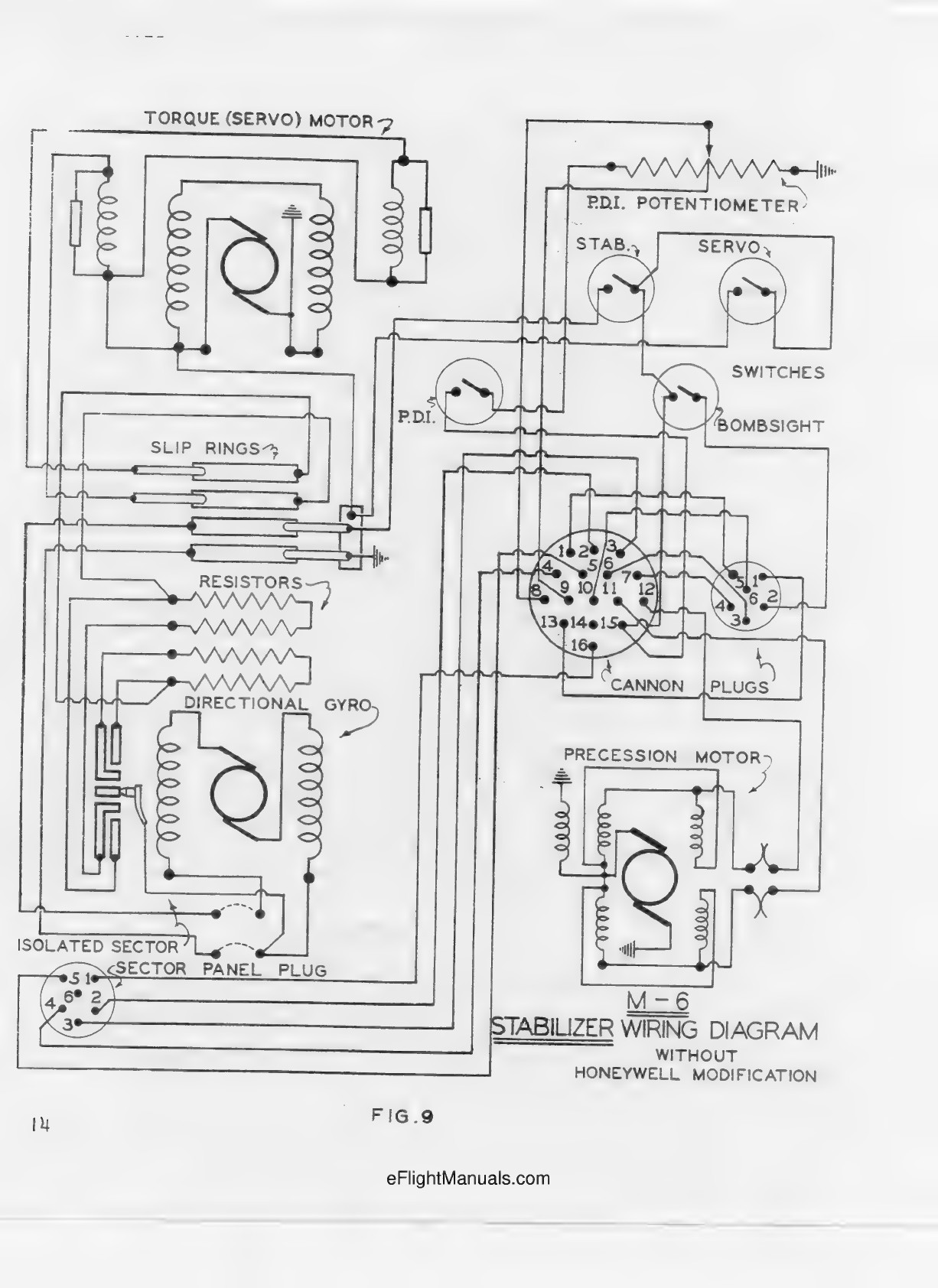

Original scan: norden2.pdf, PDF page 32
