THE M-SERIES MANUALAN INTERACTIVE EDITION

The Norden Bomb Sight manual

Precession leveling knobs

Loading page…

Precession leveling knobs

PAGE 184 / Precession leveling knobs

RESTRICTED

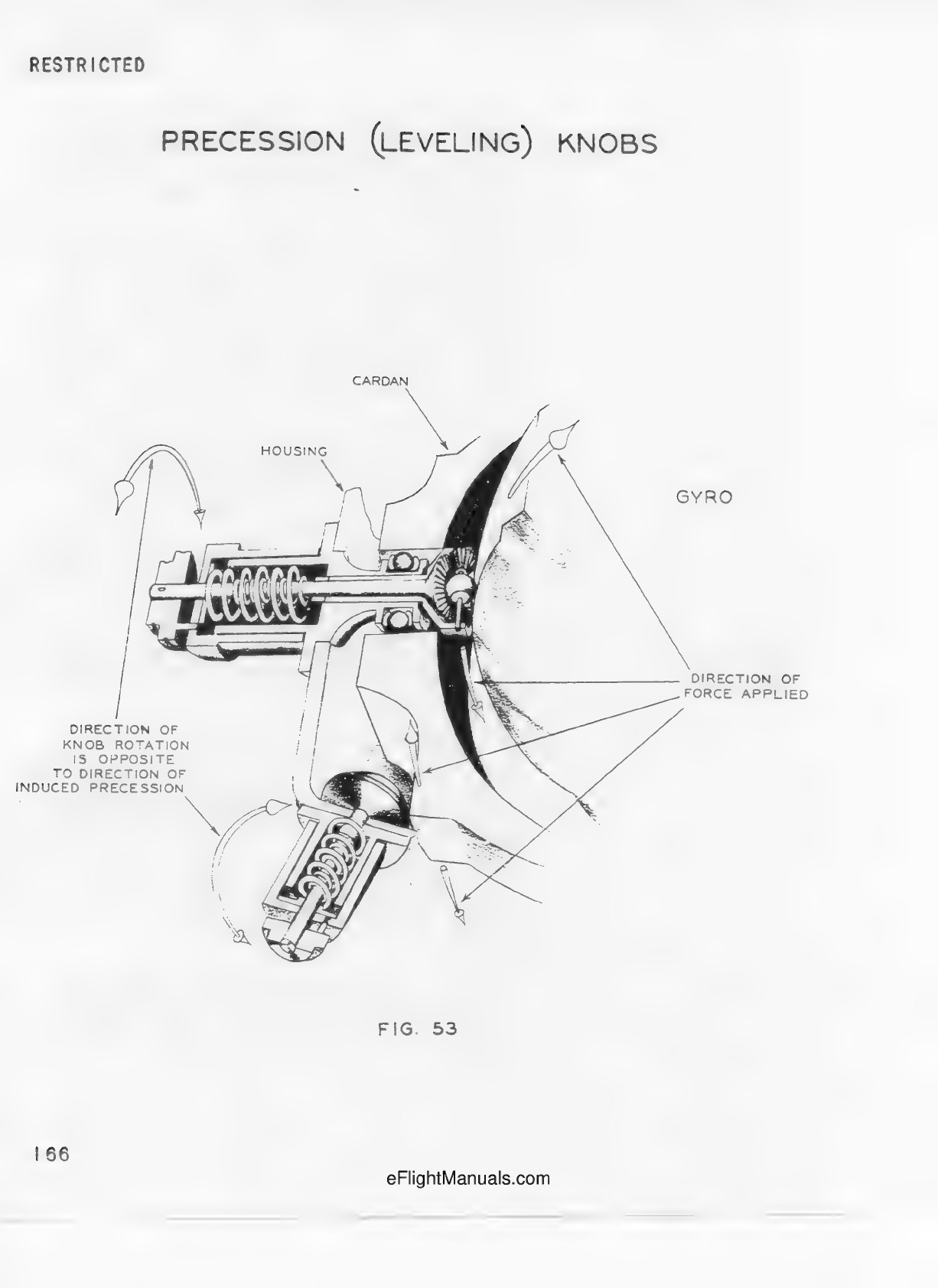

PRECESSION (LEVELING) KNOBS

Interactive drawing

FIG. 53

166

Original scan: norden2.pdf, PDF page 184

Drag left to reveal the original from the right. Use arrow keys to adjust, Home for the original, or End for the recreated page.

Explore this mechanismPrecession leveling knobs ↗Sight gyro and cradle stabilization ↗
