Cleaning torque-motor clutches

PAGE 72 / Cleaning torque-motor clutches

RESTRICTED

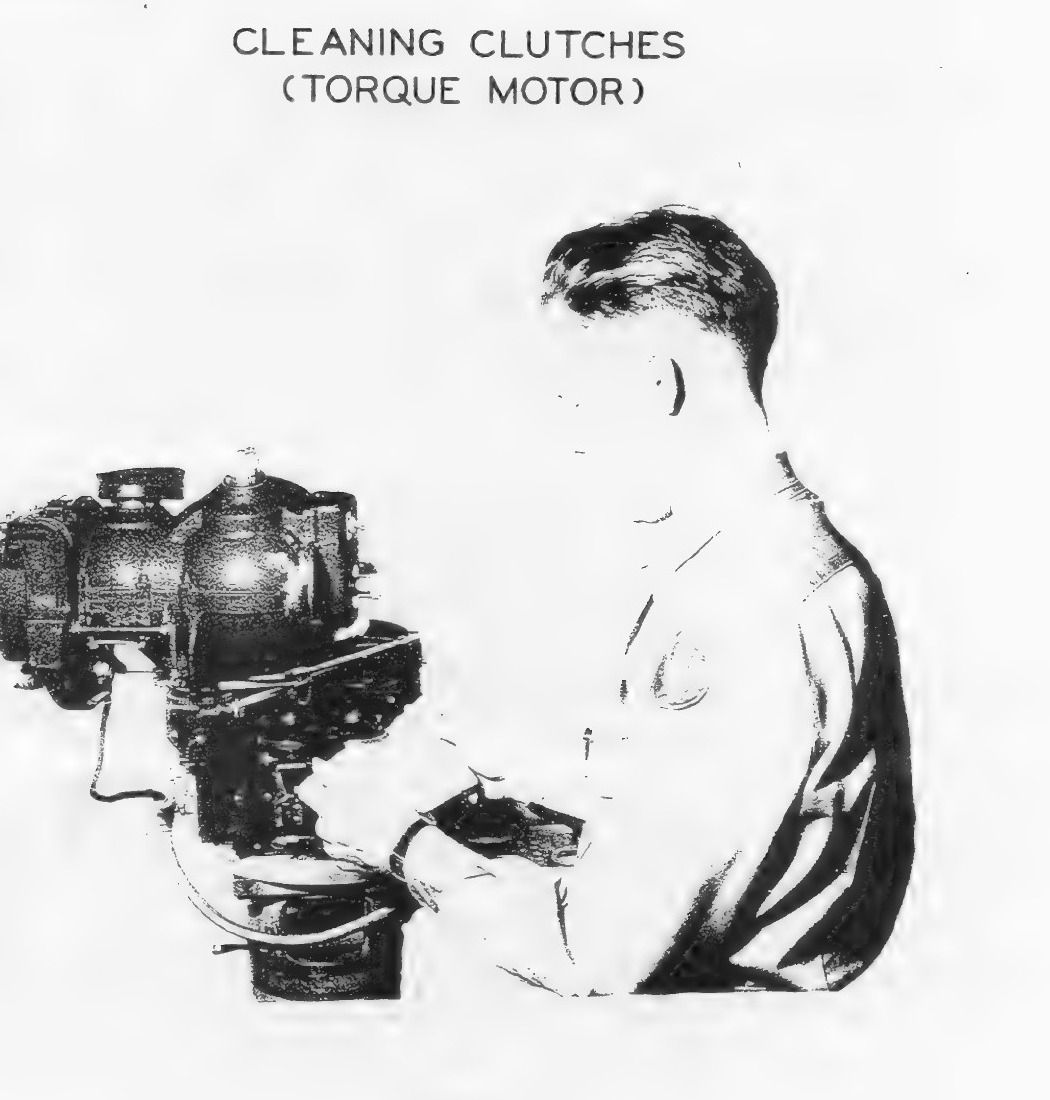

FIG. 26

Clean clutches with clean

white cloth. Place

Cioth between clutch plate and cork insert, wedge

gyro and

turn torque motor on.

Se very

careful

. to hold cloth out of gear teeth and to keep clutch

surfaces free of lint.

Keep using new section of

cloth until no oil or dirt appears on it.

Cleaning clutches, torque motor, Fig. 26

54

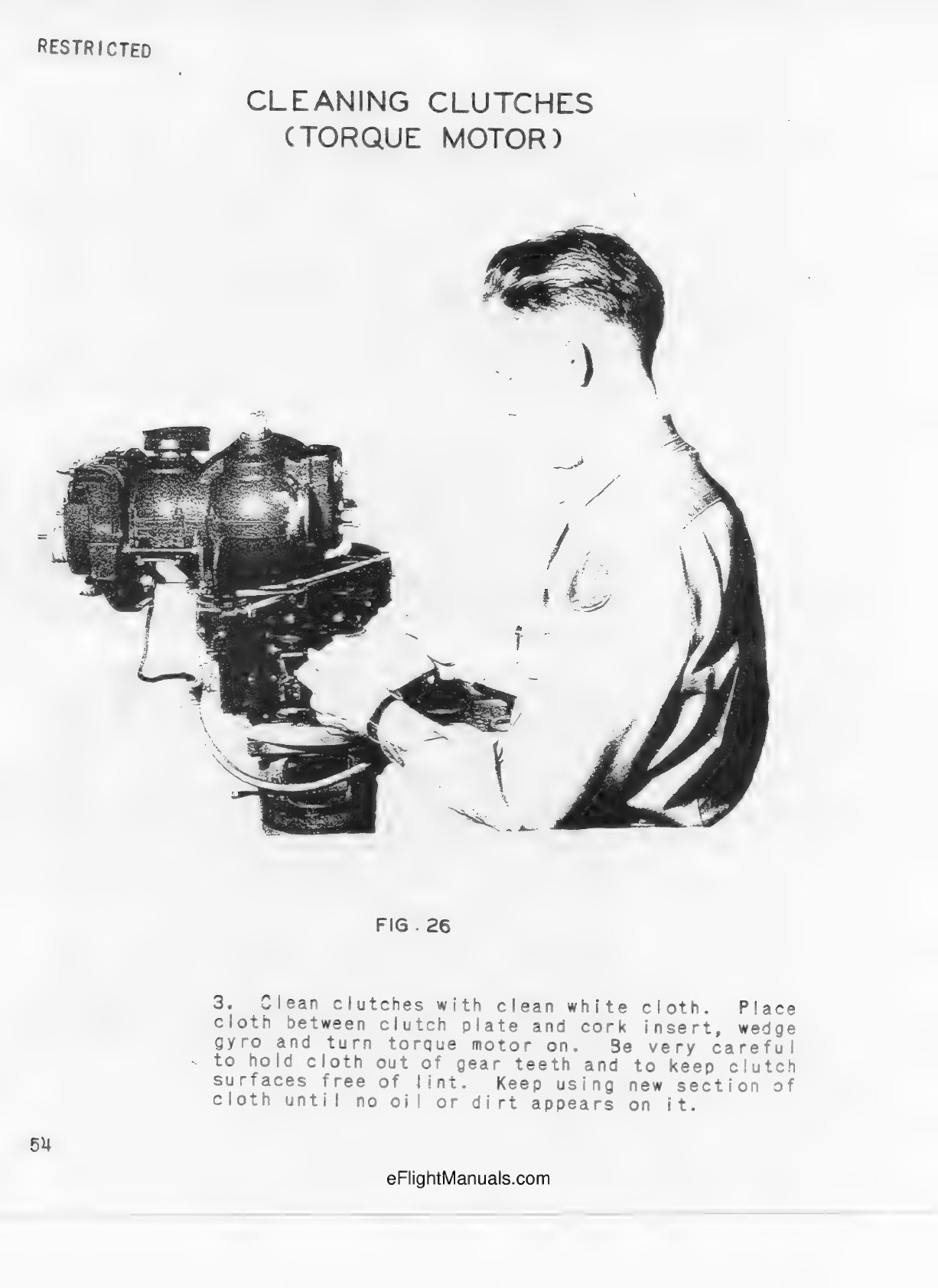

Original scan: norden2.pdf, PDF page 72
