Stabilizer reassembly
RESTRICTED
2. Remove switch panel.
a. Check for loose connections or damaged wiring.
CAUTION: Do not remove any wires.

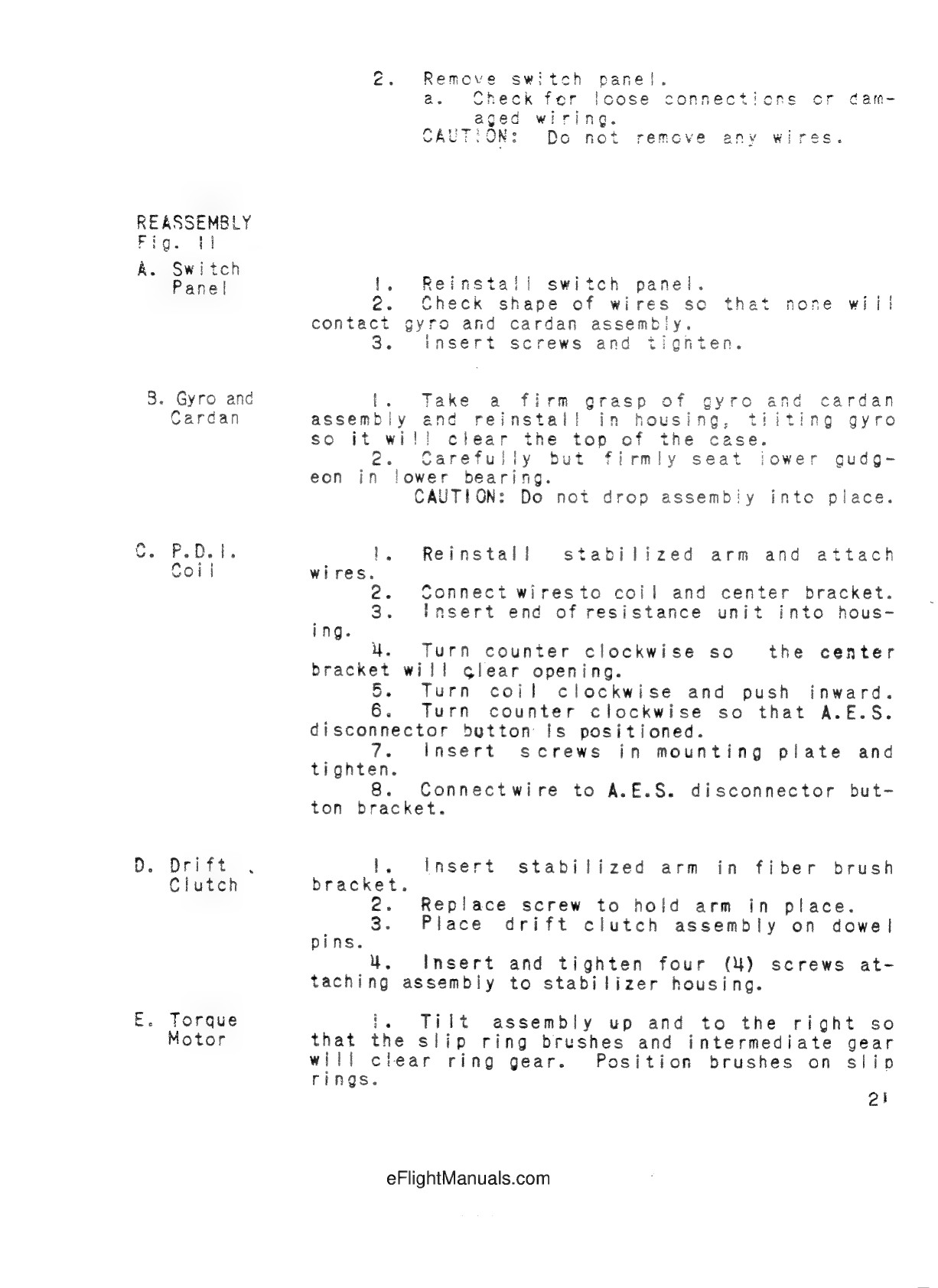

REASSEMBLY
Fig. 11
A. Switch
Panel
1. Reinstall switch panel.
2. Check shape of wires so that none will contact
gyro and cardan assembly.
3. Insert screws and tighten.
B. Gyro and
Cardan
1. Take a firm grasp of gyro and cardan assembly and
reinstall in housing, tilting gyro so it will
clear the top of the case.
2. Carefully but firmly seat lower cardan gudgeon in
lower bearing.
CAUTION: Do not drop assembly into place.
C. P.D.I.
Coil
1. Reinstall stabilized arm and attach wires.
2. Connect wires to coil and center bracket.
3. Insert end of resistance unit into housing.
4. Turn counter clockwise so the center bracket will
clear opening.
5. Turn coil clockwise and push inward.
6. Turn counter clockwise so that A.E.S.
disconnector button is positioned.
7. Insert screws in mounting plate and tighten.
8. Connect wire to A.E.S. disconnector button
bracket.
D. Drift
Clutch
1. Insert stabilized arm in fiber brush bracket.
2. Replace screw to hold arm in place.
3. Place drift clutch assembly on dowel pins.
4. Insert and tighten four (4) screws attaching
assembly to stabilizer housing.
E. Torque
Motor
1. Tilt assembly up and to the right so that the
slip ring brushes and intermediate gear will
clear ring gear. Position brushes on slip rings.
21
