The Norden Bomb Sight manual

Sight wiring diagram

Loading page…

Sight wiring diagram

PAGE 106 / Sight wiring diagram

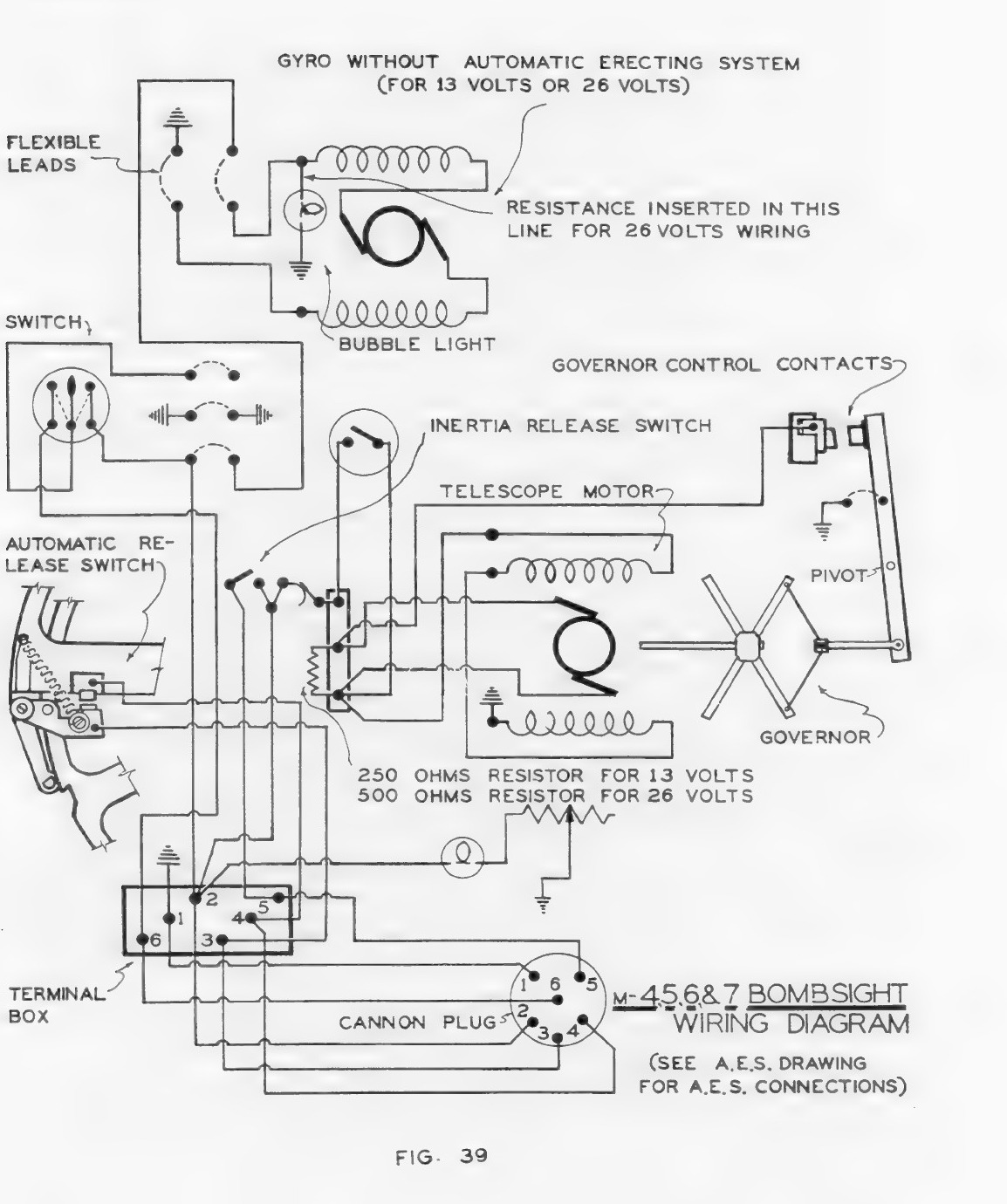

RESTRICTED Sight wiring diagram; source figure or chart from Norden Bombsight manual leaf 106

Sight wiring diagram; source figure or chart from Norden Bombsight manual leaf 106

88

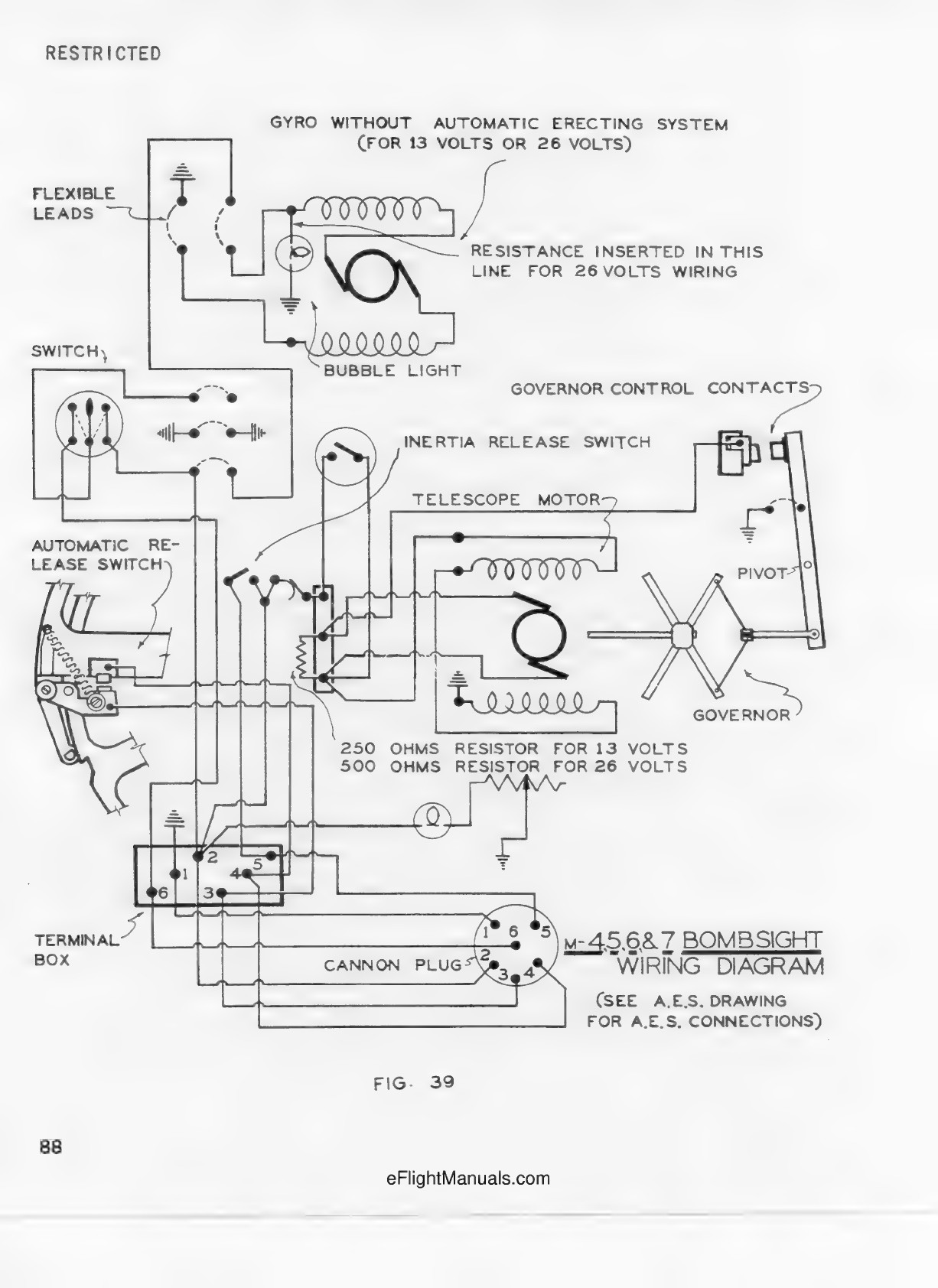

Original scan: norden2.pdf, PDF page 106
