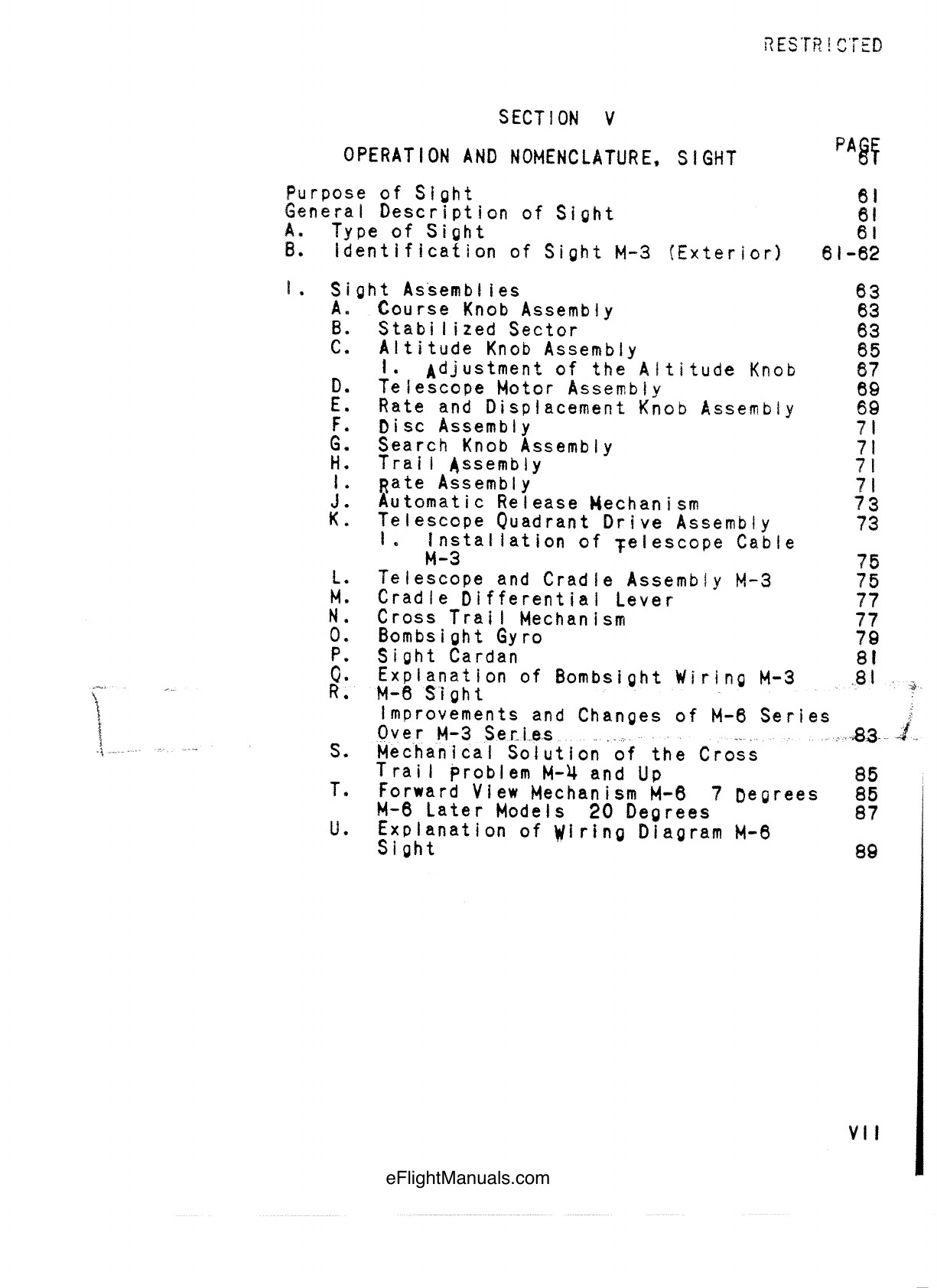

Contents · Section V
RESTRICTEDPAGEVII
SECTION V
OPERATION AND NOMENCLATURE, SIGHT61
Purpose of Sight61
General Description of Sight61
A. Type of Sight61
B. Identification of Sight M-3 (Exterior)61-62
I. Sight Assemblies63
A. Course Knob Assembly63
B. Stabilized Sector63
C. Altitude Knob Assembly65
1. Adjustment of the Altitude Knob67
D. Telescope Motor Assembly69
E. Rate and Displacement Knob Assembly69
F. Disc Assembly71
G. Search Knob Assembly71
H. Trail Assembly71
I. Rate Assembly71
J. Automatic Release Mechanism73
K. Telescope Quadrant Drive Assembly73
1. Installation of Telescope Cable
M-375
L. Telescope and Cradle Assembly M-375
M. Cradle Differential Lever77
N. Cross Trail Mechanism77
O. Bombsight Gyro79
P. Sight Cardan81
Q. Explanation of Bombsight Wiring M-381
R. M-6 Sight
Improvements and Changes of M-6 Series
Over M-3 Series83
S. Mechanical Solution of the Cross
Trail Problem M-4 and Up85
T. Forward View Mechanism M-6 7 Degrees85
M-6 Later Models 20 Degrees87
U. Explanation of Wiring Diagram M-6
Sight89
