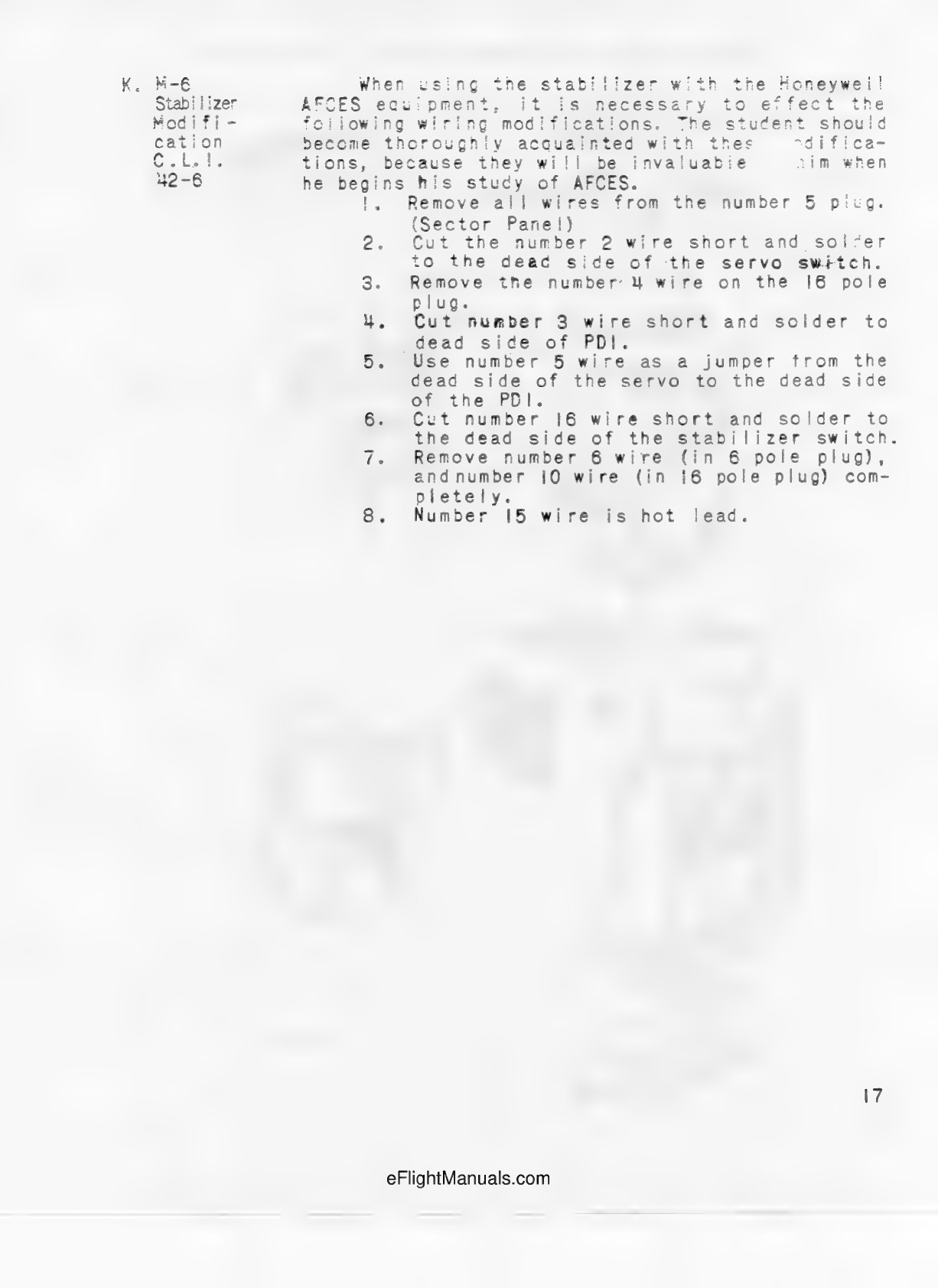

M-6 stabilizer modification C. L. I. 42-6
RESTRICTED
K. M-6
Stabilizer
Modifi-
cation
C. L. I.
42-6
When using the stabilizer with the Honeywell
AFCES equipment, it is necessary to effect the
following wiring modifications. The student should
become thoroughly acquainted with these modifica-
tions, because they will be invaluable to him when
he begins his study of AFCES.
1. Remove all wires from the number 5 plug.
(Sector Panel)
2. Cut the number 2 wire short and solder
to the dead side of the servo switch.
3. Remove the number 4 wire on the 16 pole
plug.
4. Cut number 3 wire short and solder to
dead side of PDI.
5. Use number 5 wire as a jumper from the
dead side of the servo to the dead side
of the PDI.
6. Cut number 16 wire short and solder to
the dead side of the stabilizer switch.
7. Remove number 6 wire (in 6 pole plug),
andnumber 10 wire (in 16 pole plug) com-
pletely.
8. Number 15 wire is hot lead.
17
