Sight gyro and cradle stabilization
The vertical gyro, common cardan and telescope cradle as connected in the shared sight model.
Follow the mechanism
The cardan carries the gyro and cradle together. The connecting rod preserves their physical relationship in this mechanism study.
Spin the rotor and tilt the cardan to distinguish the axes, or remove the gyro case and separate the groups to inspect their nesting.
The gyro case, field, armature and brushes follow the source drawings and museum views. The telescope remains a simplified context model; this study does not claim an optical prescription or a calibrated stabilizing simulation.
Geometry follows the cited drawings and photographs. Unmeasured dimensions remain approximate; exploded spacing reveals existing model groups rather than a prescribed disassembly procedure.
Reference views
Inspect the full sheets as well as detail views. Figure numbers belong to their named document; similar-looking parts may be different variants.

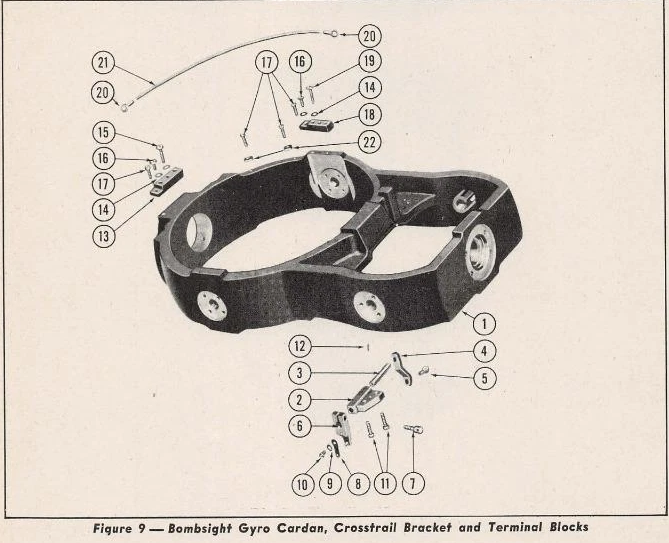

Bombsight Gyro Cardan, Crosstrail Bracket and Terminal Blocks. Classify assembled/exploded/section state before registering a camera.

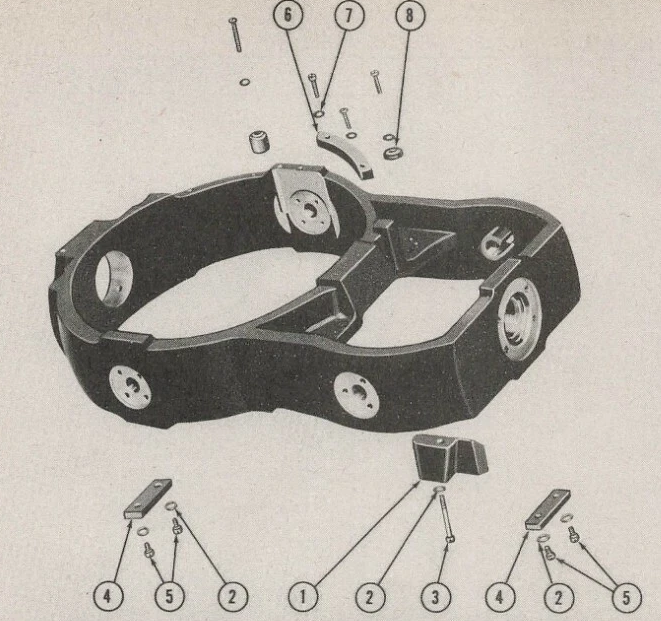

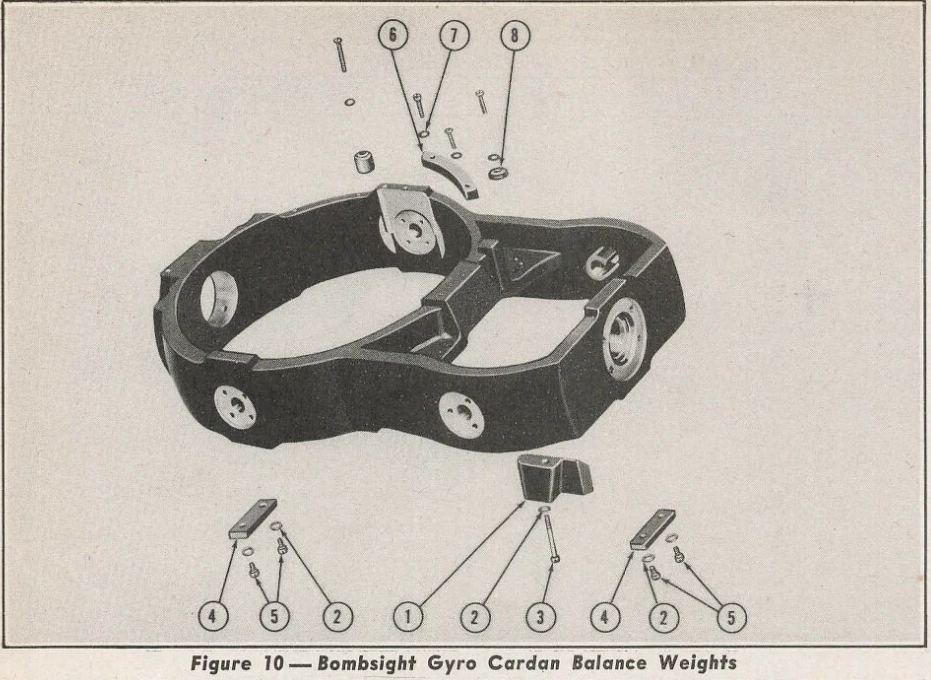

Bombsight Gyro Cardan Balance Weights. Classify assembled/exploded/section state before registering a camera.

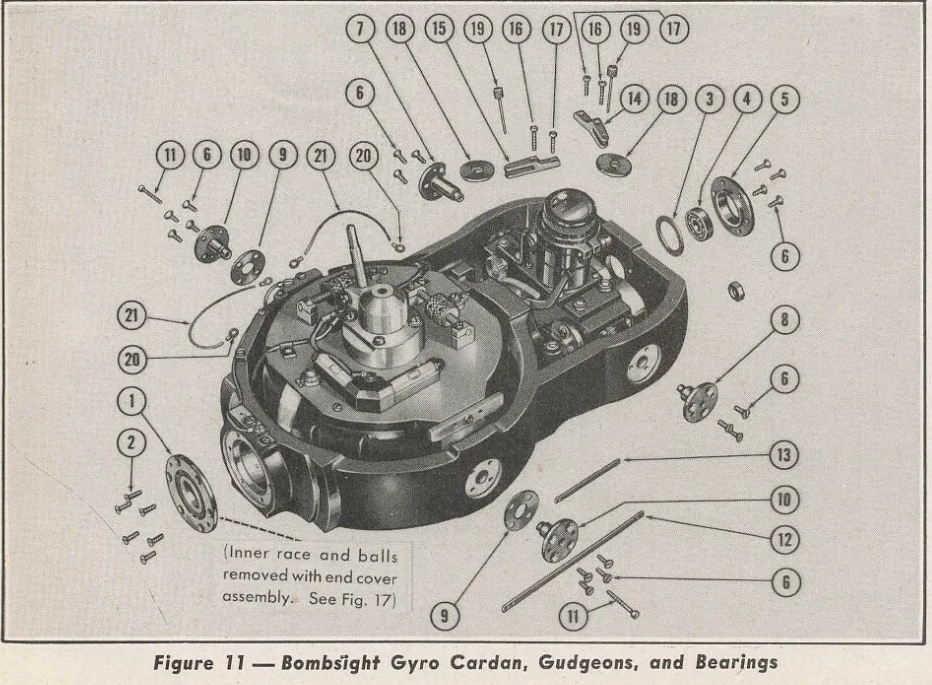

Bombsight Gyro Cardan, Gudgeons, and Bearings. Classify assembled/exploded/section state before registering a camera.
Cardan frame and balance-weight positions

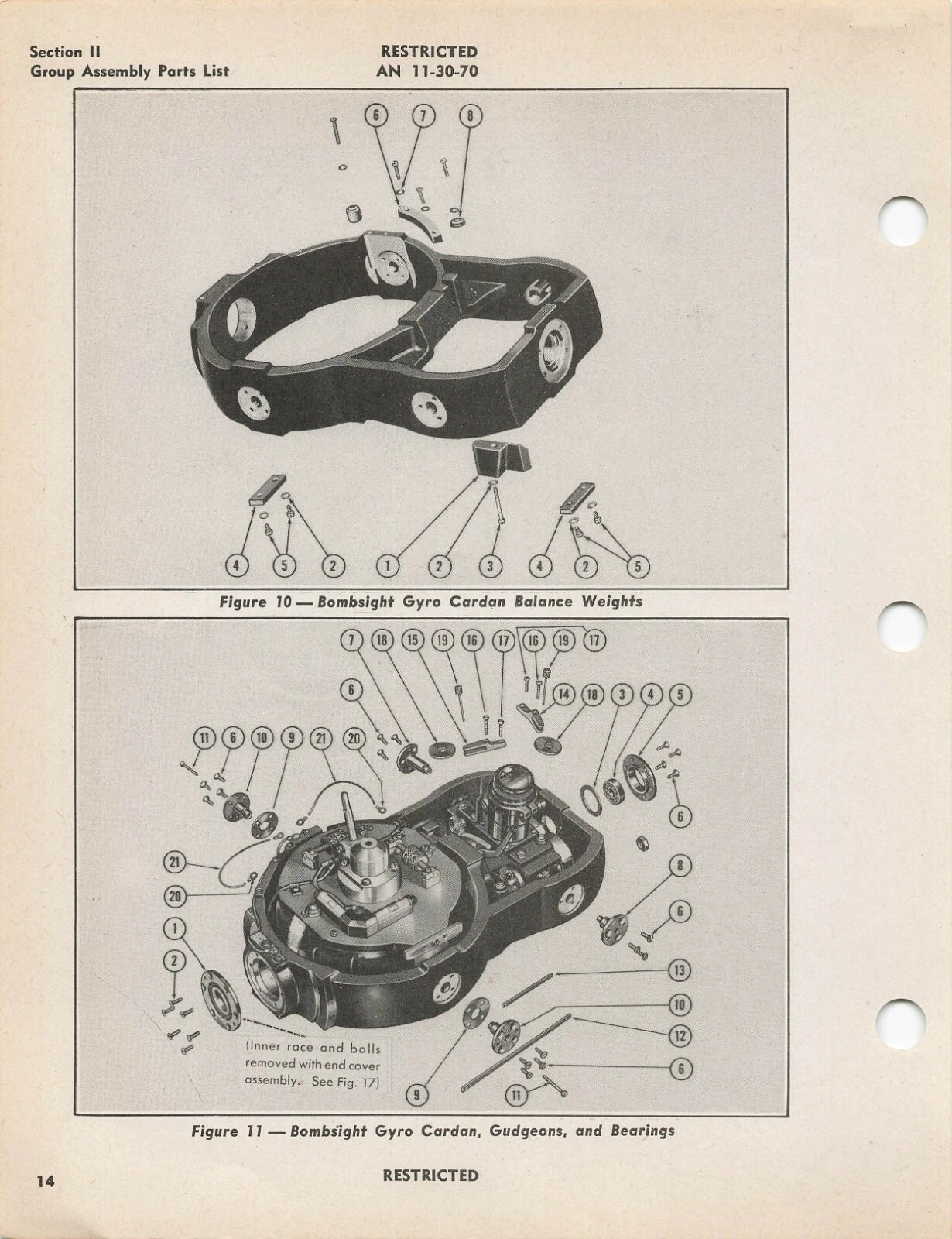

Untouched source sheet. Verify printed figure/item identity and neighboring context.

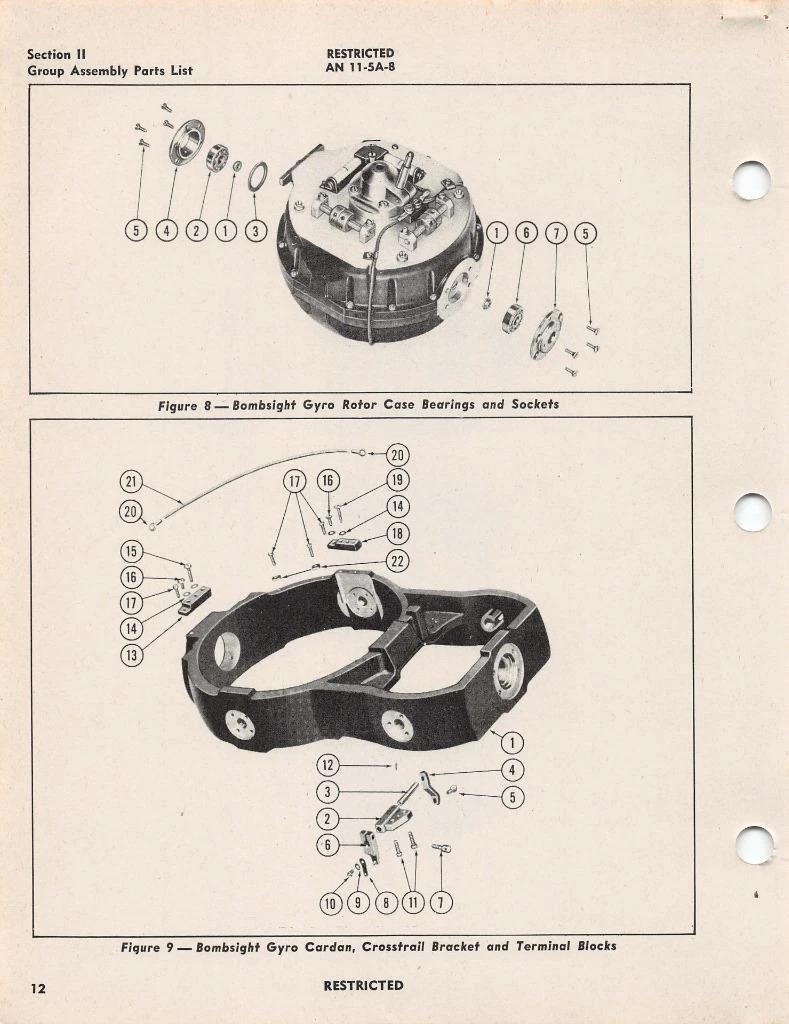

Untouched source sheet. Verify printed figure/item identity and neighboring context.
