Autopilot clutch

The separate slipping coupling associated with the autopilot and Pilot Direction Indicator linkage.

Drag to turn · Arrow keys to rotate · Home to reset

Follow the mechanism

Its operating knob and connecting rod are separate from those of the bombsight clutch.

Inspect the spring, strap and collar around the common axis to follow engagement.

Geometry follows the cited drawings and photographs. Unmeasured dimensions remain approximate; exploded spacing reveals existing model groups rather than a prescribed disassembly procedure.

Used in these components

COMPONENT · PAGE 19

Stabilizer subsystem

The directional gyro, torque motor, clutches and indication linkage carried by the stabilizer housing.

Reference views

Inspect the full sheets as well as detail views. Figure numbers belong to their named document; similar-looking parts may be different variants.

AN 11-30-70, figure 44
AN 11-30-70 · Fig. 44

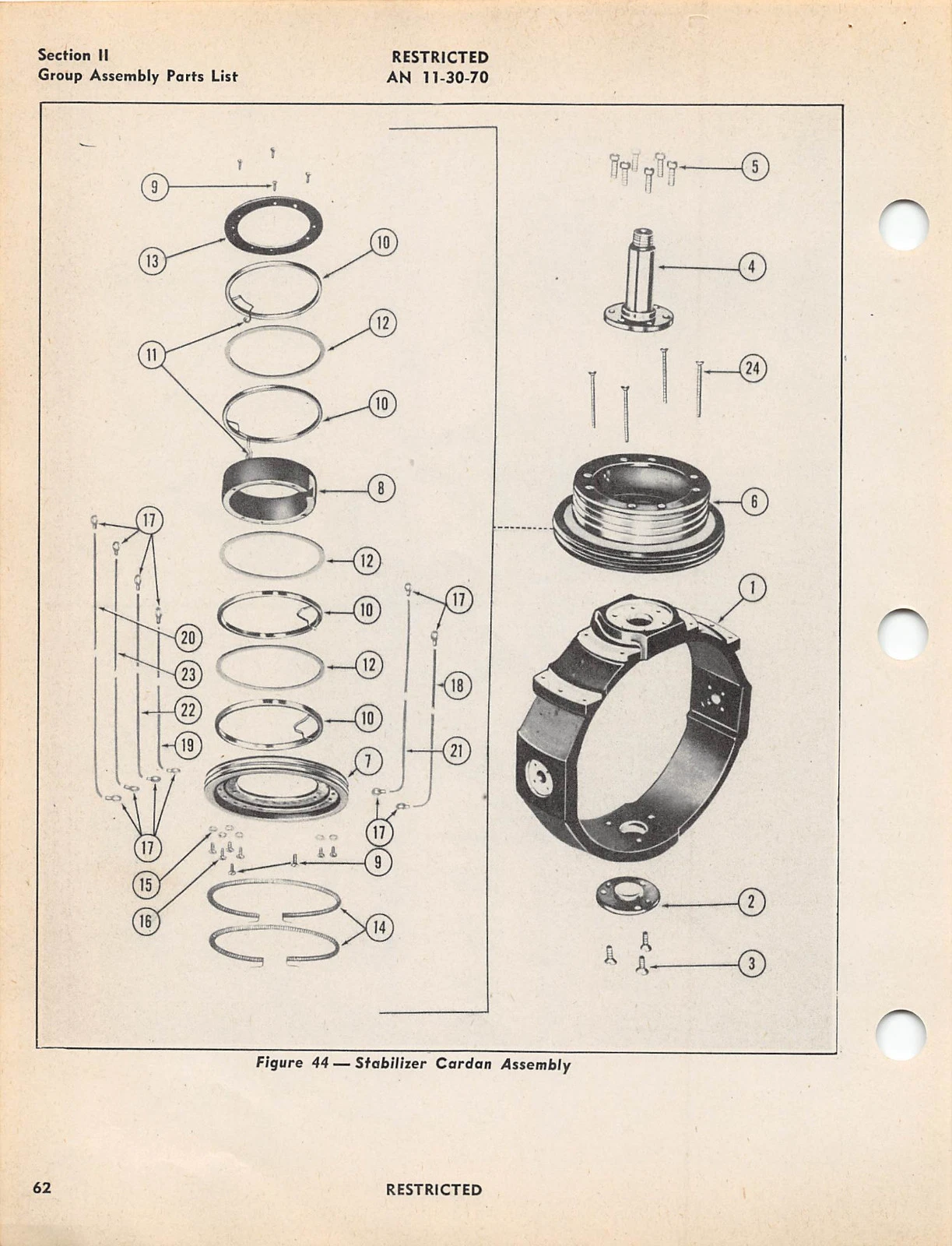

Stabilizer Cardan Assembly. Classify assembled/exploded/section state before registering a camera.

AN 11-30-70, figure 44
AN 11-30-70 · Fig. 44

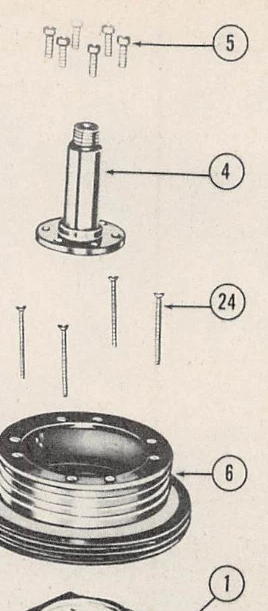

Upper gudgeon and slip-ring carrier

AN 11-30-70, figure 44
AN 11-30-70 · Fig. 44

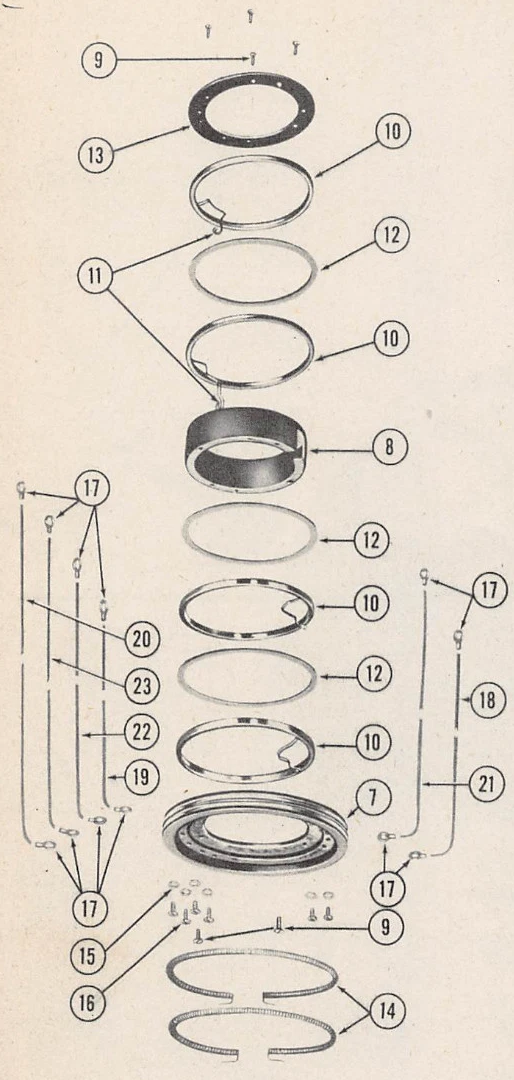

Exploded slip-ring and resistor stack
